SPECIFICATIONS

Application: Desktop,Server

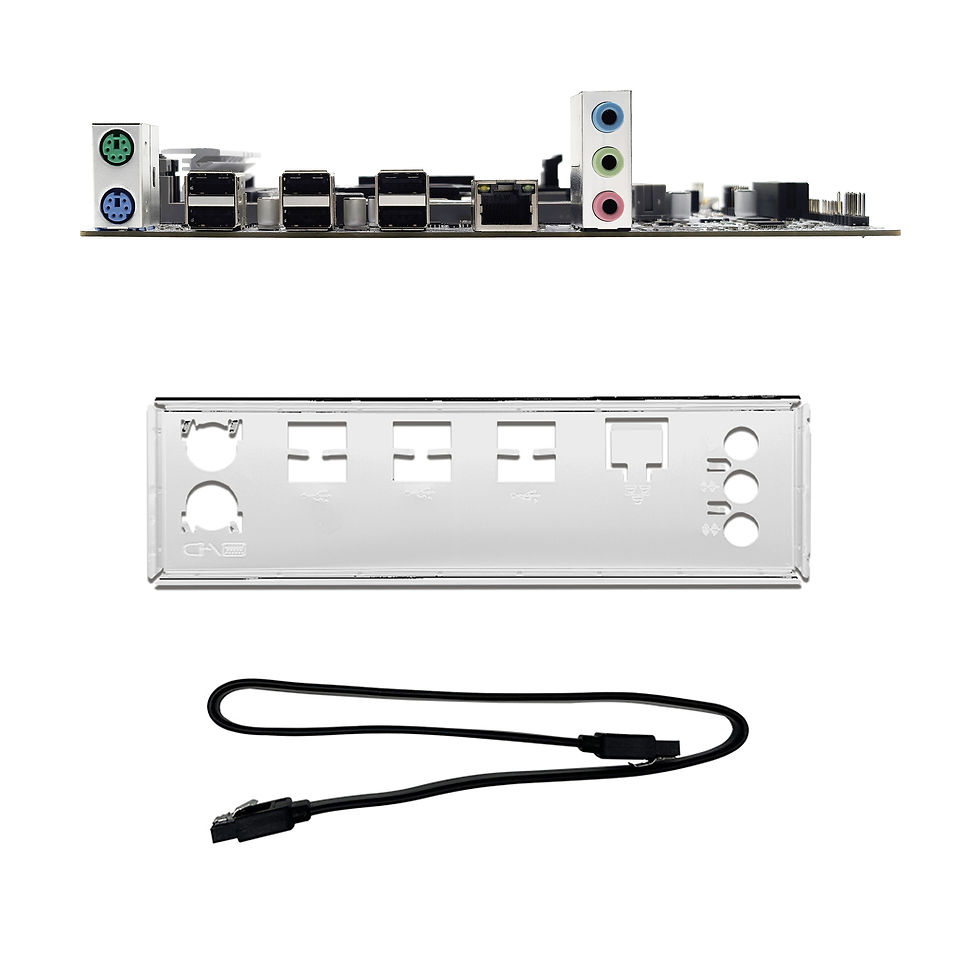

Back I/O Ports: 1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2

Battery Included: No

Brand Name: ZSUS

Certification: RoHS,CE

Chipset: h55

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB,ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon E Series

RAID Supported: Yes

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Design,Video Production,Server,others

With CPU: No

Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.

Model: ZSUS X99-W Motherboard

CPU Socket: LAG2011-3 V3/V4 series processor.

Chip: HM55 chipset

Memory Socket: Dual channel .DDR4 2400MHz

Memory slot: 4*DDR4 Maximum capacity: 128GB. Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN).

Ethernet: One Realtek Gigabit Ethernet card. USB interface: 6 USB interfaces 2.0 ports. Pcie: Two Pcie x16, one Pcie x1. USB ports: 4 (1 USB port can be connected to 2 USB 2.0 ports). SATA ports: Three SATA 2.0 ports. ATXPWR interface :1 standard 1X8PIN power outlet :1 standard 1X24PIN power outlet. M.2 port: 1* M.2 port (supporting NVME M.2 AND SATA M.2 ). Dimensions: 216mmx190mm.

CPU:

Processor Series: Xeon E5 2670V3 (12 cores/24 threads) Main frequency: 2.3GHz up to 3.1GHz Socket type: LGA 2011-3 3rd level cache: 30MB Technology: 22nm Note: 1: CPU is used, condition good, 1 year warranty 2: There may have some little physical scratches on the surface of the CPU, this is pretty normal. 3: All CPU are strictly tested before shipping 4.The origin of CPU is from different country, like China, Malaysia, Vietnam, Costa Rica etc, but the performance is all the same. Random delivery. If you mind, please don't buy it.

Memory:

Type: ECC REG (server memory) Frequency: DDR4 2133MHZ Capacity:16G (1*16G) Note: Memory is used,condition good,1 year guarantee
